Our Portfolio & Case Studies
Take a look at our live physical cabling layouts, wireless spectrum survey reports, and server closet installations.
Real Cases, Certified Execution
Explore our case study galleries showing structured cabling and enterprise wireless deployments. We provide manufacturer-certified testing and lifecycle validation on all systems.
High-Density Enterprise WiFi Solutions
Complete wireless network redesign for a multi-tenant corporate headquarters and adjacent 50,000 sqft warehouse facility. Faced with persistent drops and scanner offline errors, our CCNP engineers deployed an end-to-end active heatmap survey, resulting in optimized wireless coverage.
Scope of Infrastructure Deployment

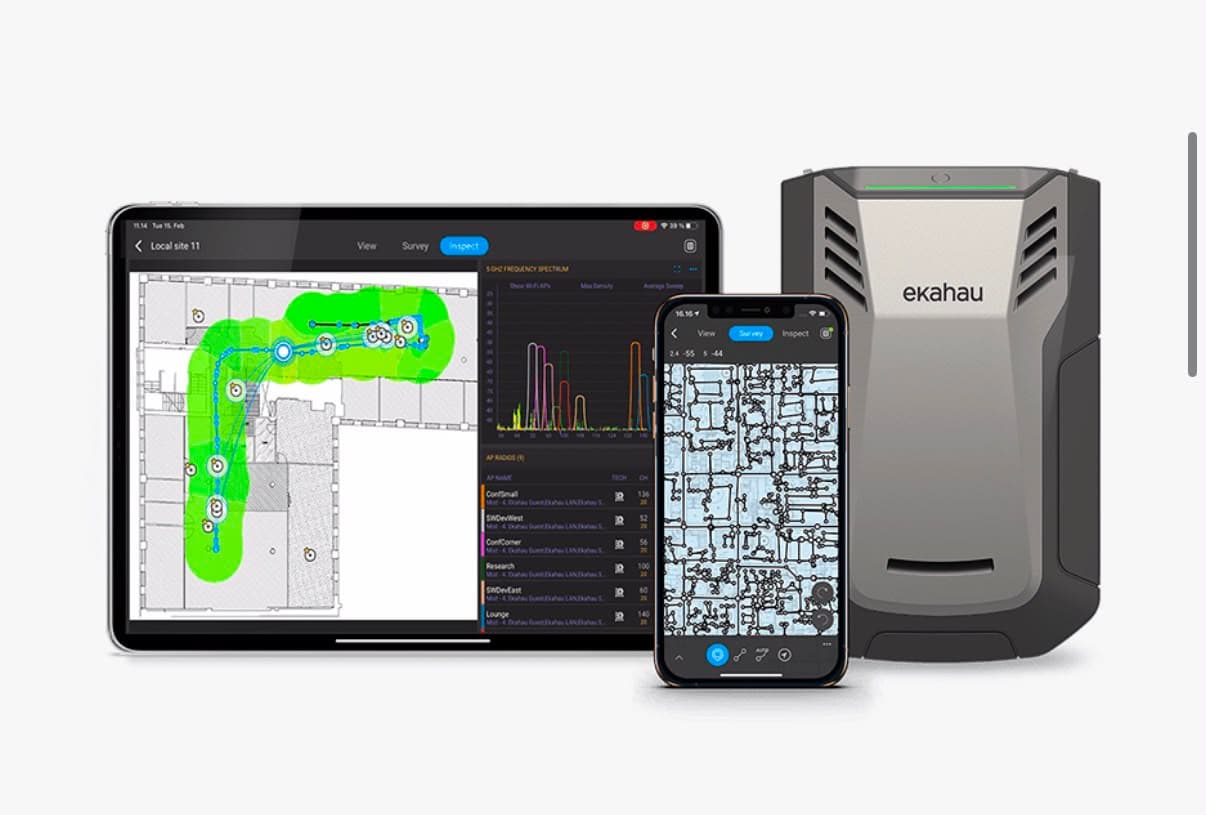

- Active RF spectrum scans and Ekahau Sidekick measurements to map dead zones

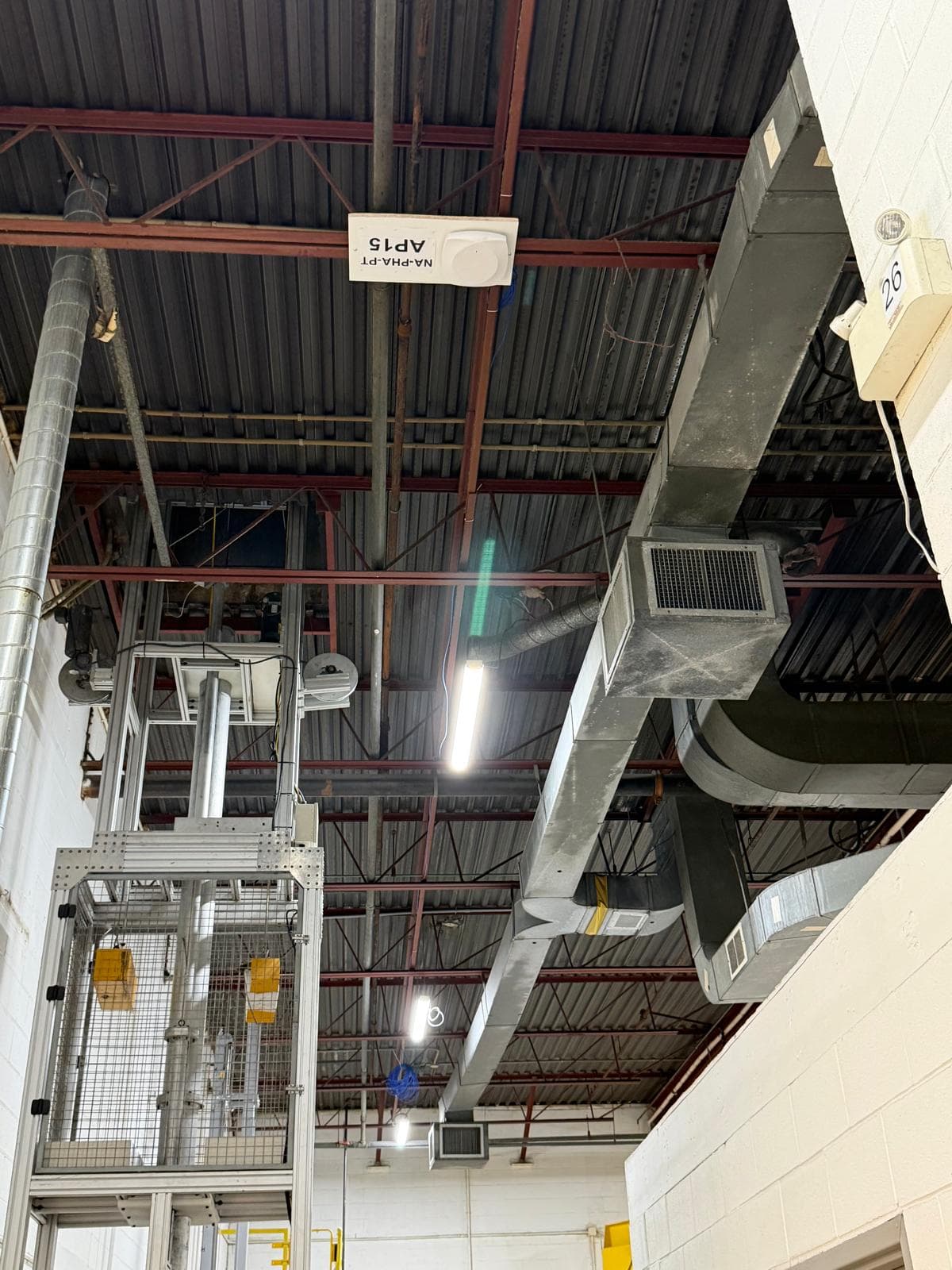

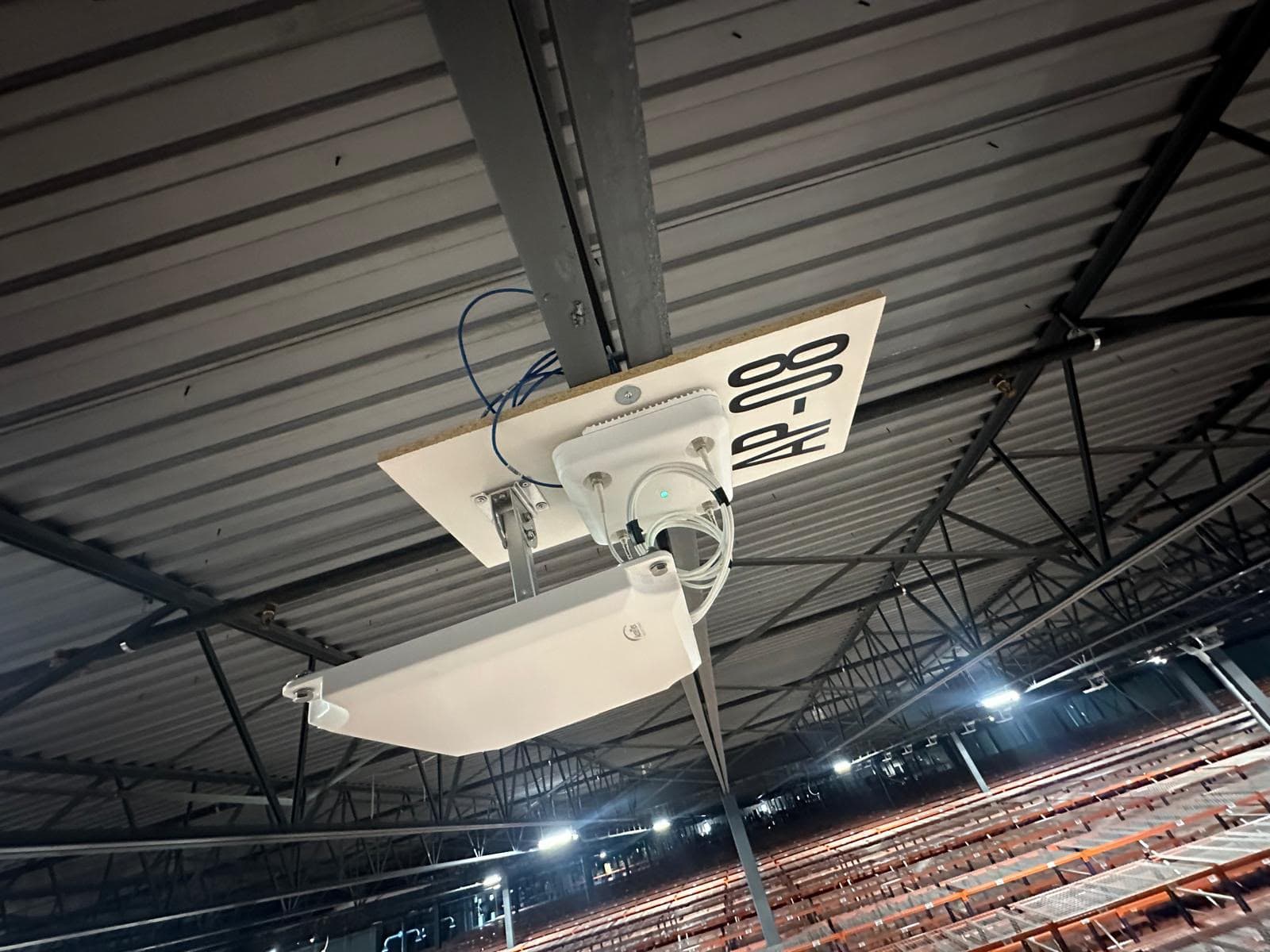

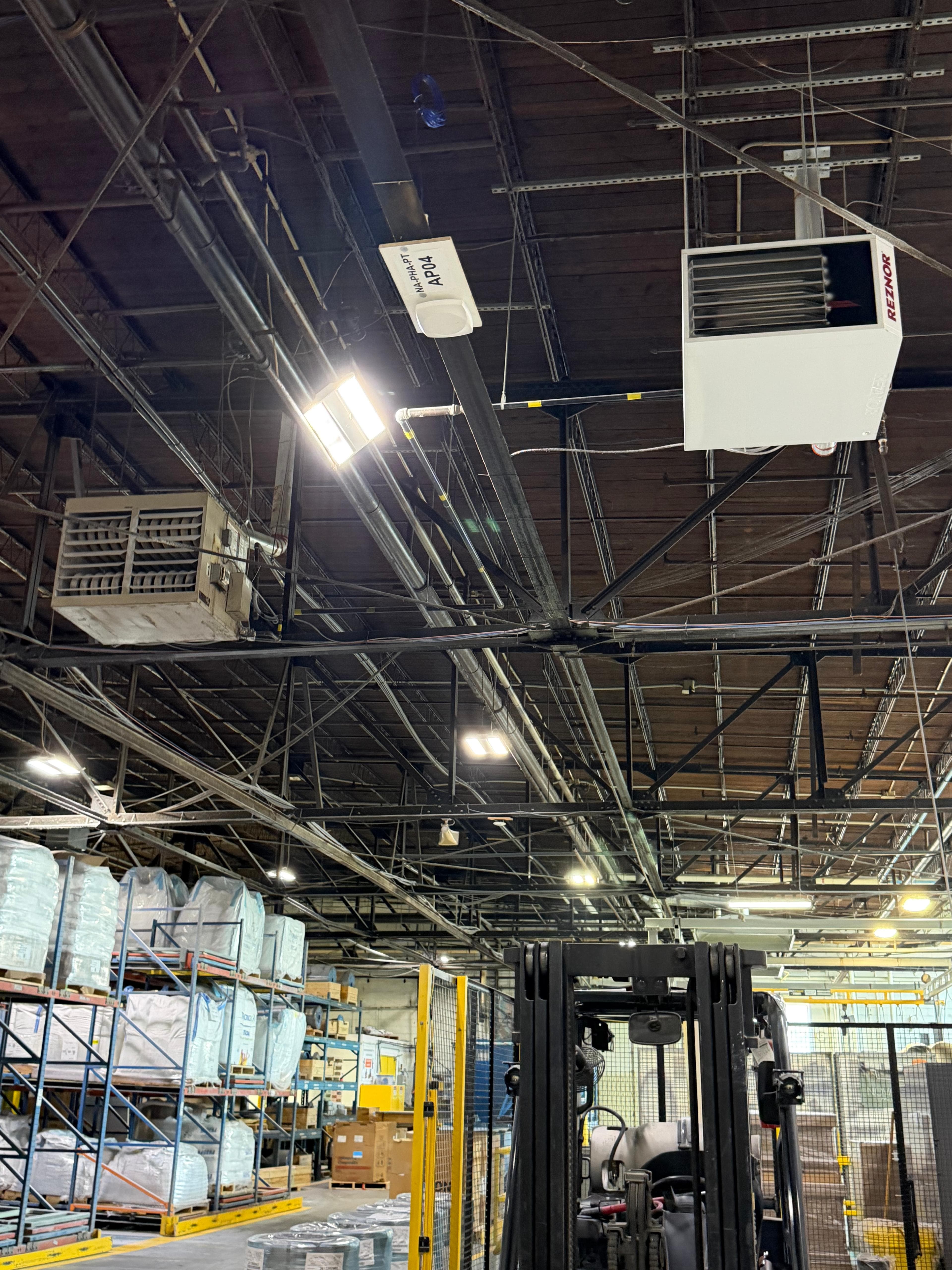

- High-ceiling access point installations with custom directional patch antennas for aisle coverage
- Corporate and Guest SSID separation with secure VLAN routing policies
- Post-install roaming verification ensuring seamless handoffs under 5ms
Coverage
100% (No Dead Zones)
Avg Signal Strength
-58 dBm
Roaming Handoff
< 5ms
APs Installed
35 units
Office & Warehouse Structured Cabling

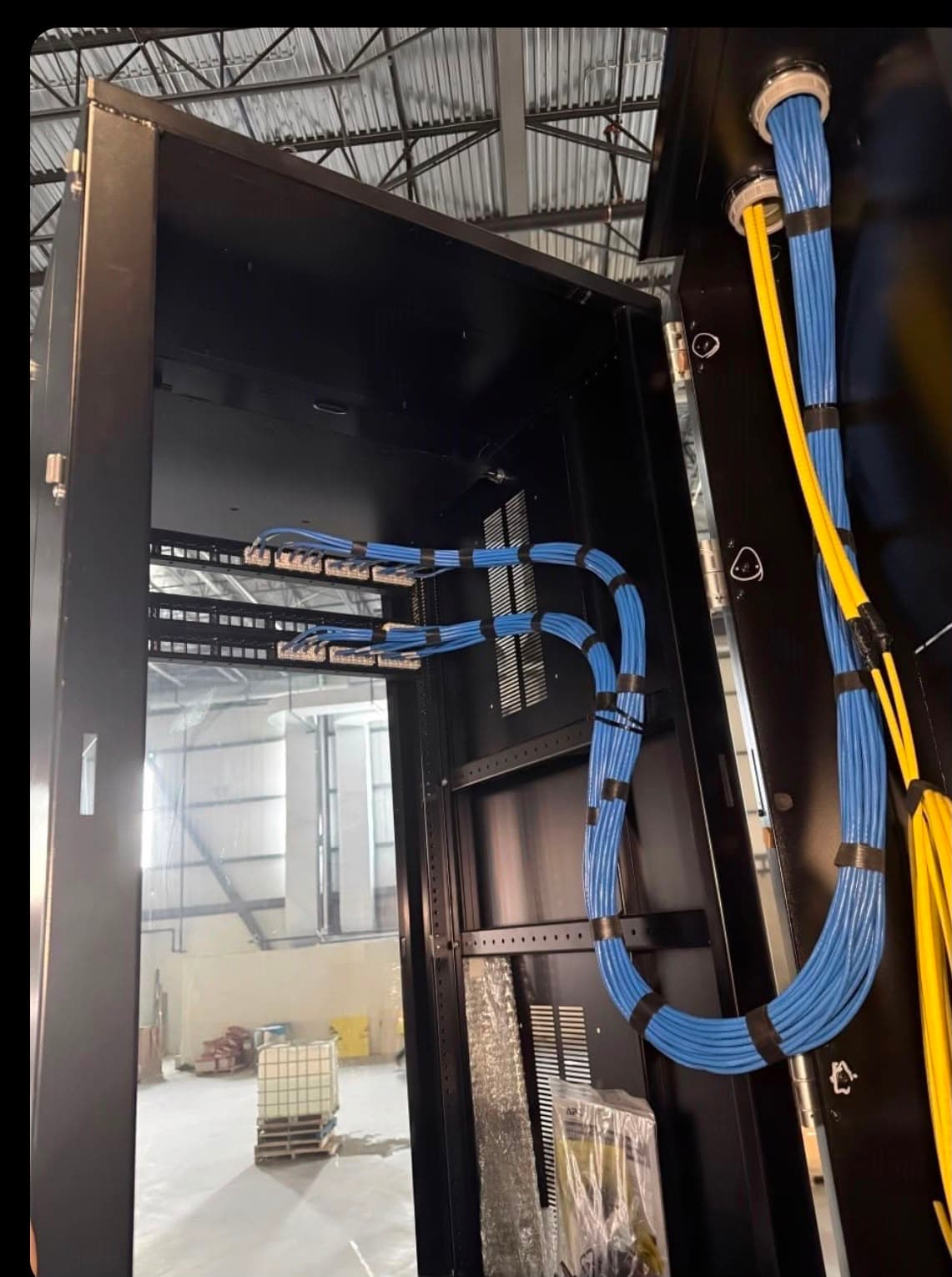

Designed and implemented physical low-voltage network cabling and server rack room layouts for a new distribution facility. Our certified technicians routed Cat6 runs, spliced single-mode fiber backbones, and dressed server racks to eliminate cabling chaos and allow for modular growth.
Scope of Infrastructure Deployment
- Fusion splicing single-mode fiber trunks for high-bandwidth inter-building connections

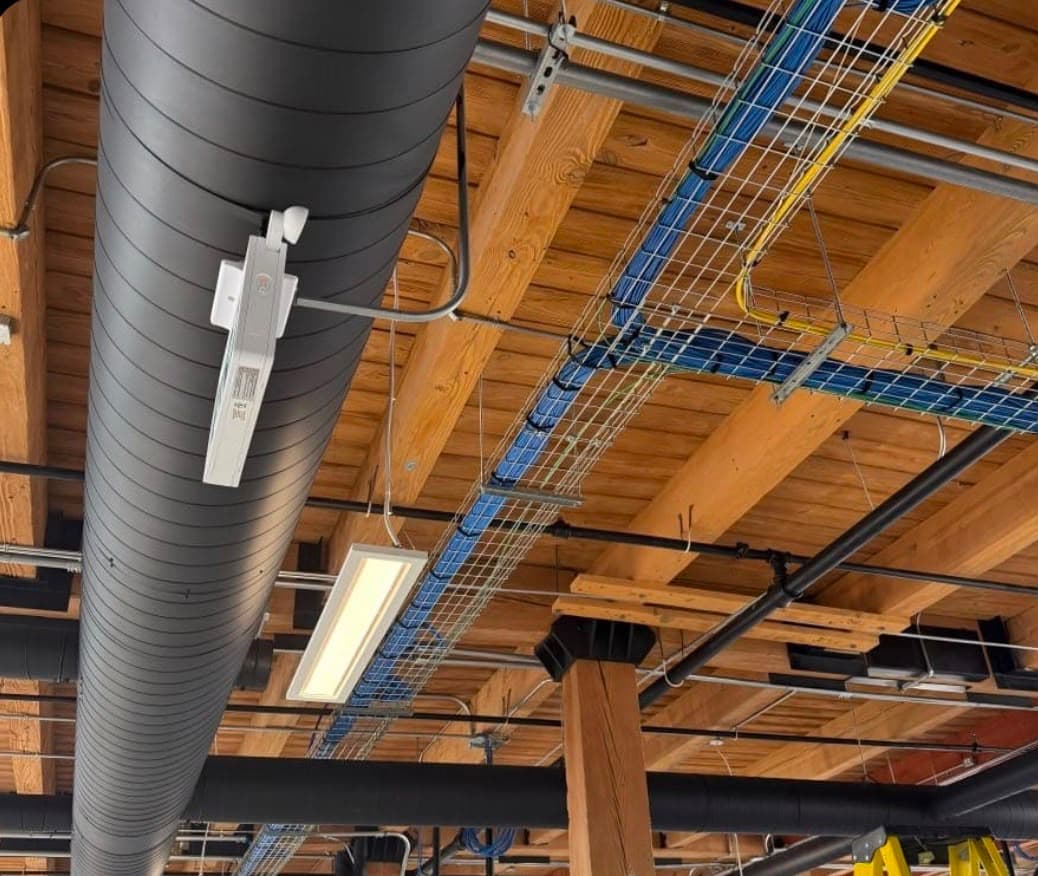

- Cat6 ethernet network cabling routes with clean wire mesh ceiling tray combed layouts
- Alternating vertical cable management managers and patch panel terminations

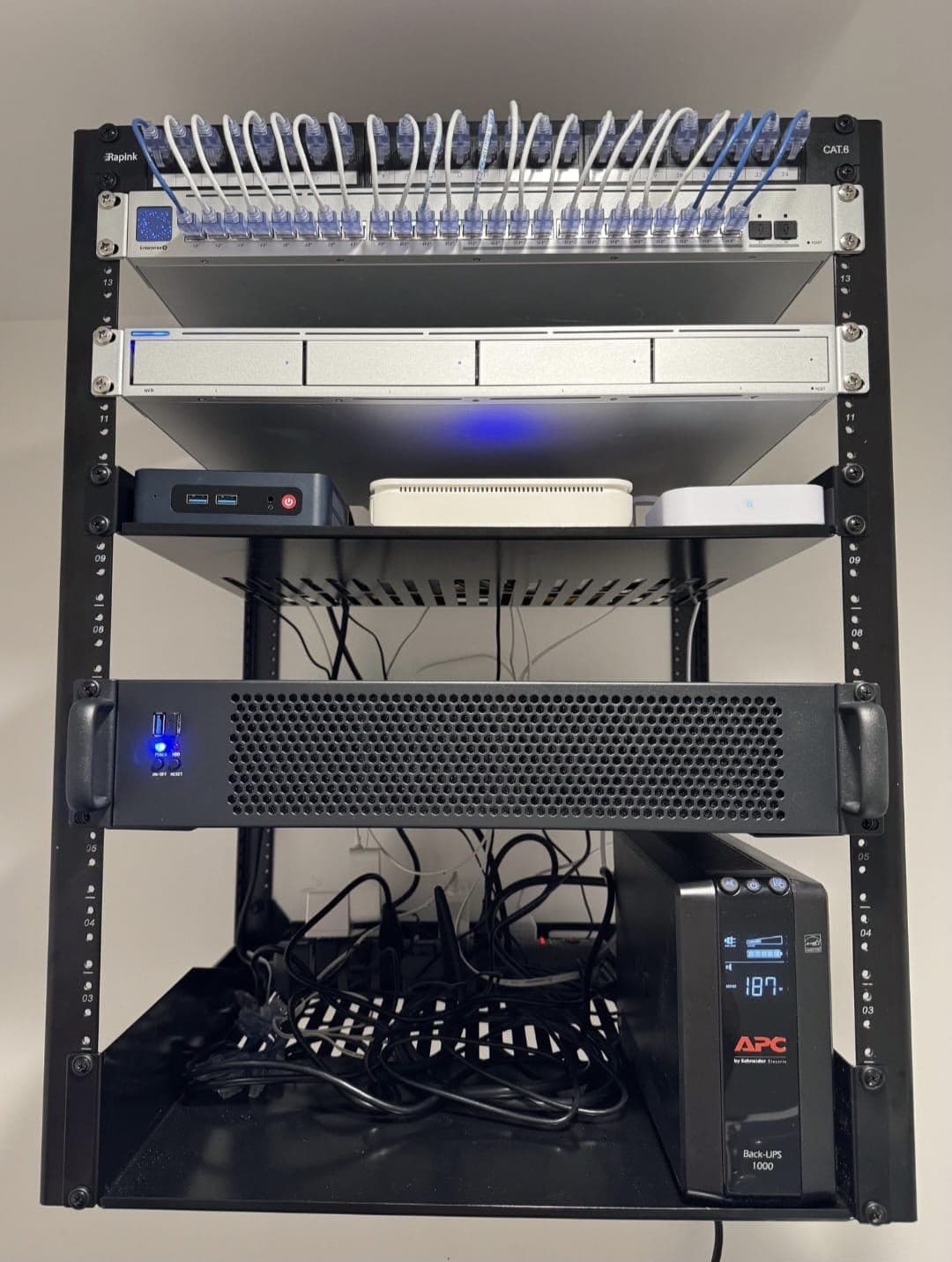

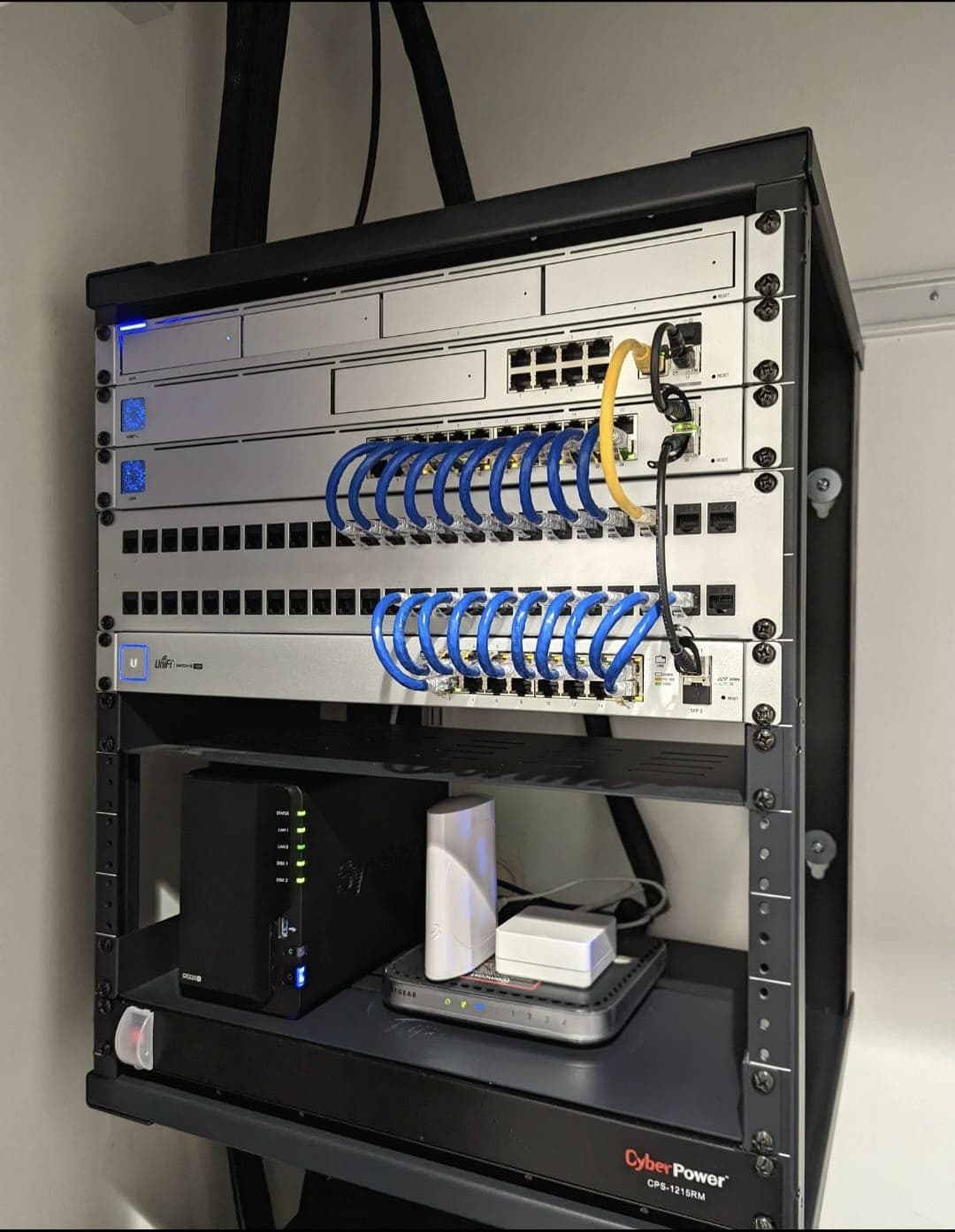

- Core rack cabinet setup integrated with UPS battery backup, Synology NAS, and UDM Gateway units
Ethernet Terminations
450+ drops
Cable Standard
Certified Cat6 / Cat6a
Fiber Splicing Loss
< 0.1dB
Rack Cabinet Capacity
42U Server Cabinet
